DIY Solar-Powered Cellphone Charger

Published

on

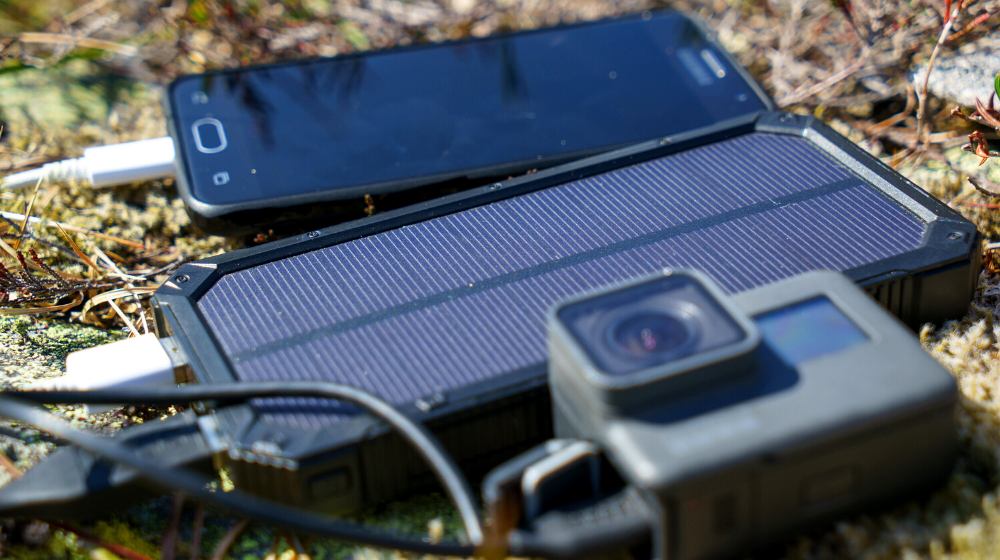

cellphone and speaker charging on solar panel | DIY Solar-Powered Cellphone Charger | diy solar-powered | solar panel | Featured

Know how to make a DIY solar-powered cell phone charger here, so you’ll still have communication in emergency situations.

RELATED: Off-Grid Solar Survival: Top 5 Things To Consider Before Diving In

Steps to Create a DIY Solar-Powered Phone Charger

The Importance of Cell Phones

Cell phones are one of the modern conveniences we rely on the most. The average person will be completely lost if forced to live without their phone for a day, much less for a longer span of time.

You can be left without electricity for an extended amount of time for multiple reasons. Blackouts, fallen power lines, being in a survival situation, or just going on a camping trip can leave you an outlet short to juice up your technology.

Quickly, your phone battery is drained, and your device becomes useless. We have a solution to this problem, and it comes in the form of a portable, rechargeable, DIY solar-powered cell phone charger.

Check out the following steps for the homemade solar power system.

Step 1: Gather the Materials

gathering materials | DIY Solar-Powered Cellphone Charger | diy solar-powered | solar panel

You’ll need the following materials to make this DIY solar-powered phone charger:

  • superglue
  • a short length of stranded wire
  • multitool
  • micro USB cable with a stripped end
  • 7805 regulator chip
  • 4-port USB hub
  • USB power bank
  • solar panel

Step 2: Solder and Mount the Regulator

Solder and Mount the Regulator | DIY Solar-Powered Cellphone Charger | diy solar-powered | solar panel
Solder and Mount the Regulator | DIY Solar-Powered Cellphone Charger | diy solar-powered | solar power system
Solder and Mount the Regulator | DIY Solar-Powered Cellphone Charger | diy solar-powered | solar power system
Solder and Mount the Regulator | DIY Solar-Powered Cellphone Charger | diy solar-powered | diy solar projects
Solder and Mount the Regulator | DIY Solar-Powered Cellphone Charger | diy solar-powered | diy solar projects

The regulator plays an important role in this solar phone charger as it charges the power bank. It also prevents damage to the power bank’s internal due to overvoltage.

Using solder, join the USB plug with the regulator and then join two stranded wires on the regulator for your solar panel (+ and -). Apply a small amount of super glue to set up the regulator in the terminal block of the solar panel.

If necessary, trim the regulator’s heat-sink mount. Join the other end of the two stranded wires to the solar panel using solder again.

RELATED: DIY Portable Solar Generator

Step 3: Mount the Remaining Devices

Mount the Remaining Devices | DIY Solar-Powered Cellphone Charger | diy solar-powered | diy solar projects

Mount the Remaining Devices | DIY Solar-Powered Cellphone Charger | diy solar-powered | solar power system

In this step, you’ll need to mount the remaining devices to complete the DIY solar power system. You can use a strong double-sided adhesive to fix the USB hub and power bank behind the solar panel.

In case you want to mount the devices permanently, it’s best to use epoxy or hot glue to let them stay still.

Set up the power bank and attach the solar panel’s charging cable to the power bank’s charge input. Plug the USB hub to the power bank’s output.

You can then start charging by plugging in your phone to the USB hub. You can check here for the full DIY steps.

Mount the Remaining Devices | DIY Solar-Powered Cellphone Charger | diy solar-powered | solar panel

Mount the Remaining Devices | DIY Solar-Powered Cellphone Charger | diy solar-powered | solar power system

Mount the Remaining Devices | DIY Solar-Powered Cellphone Charger | diy solar-powered | solar power system

Through this DIY solar-powered phone charger, your communication to everyone won’t be interrupted. This can save your life if you’re in a survival situation and you want to ask for help using your phone.

It’s great to include this in your DIY solar projects. Build your own solar power system now and get ready for the big outdoor fun!

Have you tried creating your own solar-powered phone charger? What other tips or ways can you share with us to make this creation more fun and useful? Drop your tips in the comments section below!

UP NEXT:

DIY Solar-Powered Cellphone Charger https://survivallife.com/diy-solar-powered-cellphone-charger/

Editor’s Note: This post was originally published on April 9, 2014, and has been updated for quality and relevancy.




Comments
Continue Reading
29 Comments

29 Comments

  1. Pingback: Julie's Weekly Roundup 4.12.14 - Home Ready Home

  2. Pingback: Camp Like A Genius | 25 Additions For Your Camping Gear |Survival Life - Survival Life | Preppers | Survival Gear | Blog

  3. David LeVine

    May 16, 2014 at 8:21 PM

    You left out three very important parts: Two small ceramic capacitors and a diode.

    The 78xx family can self destruct if the output exceeds the input for a few microseconds and any of the devices can oscillate without bypass capacitors.

    A 1N400x diode with the cathode to the input and the anode to the output means that the worst case is one diode drop from output to input, protecting the device.

    Two 0.33 uF ceramic capacitors, one from the input to ground and one from the output to ground, with VERY SHORT LEADS will prevent the potential oscillation, which may make your cell ‘phone useless while it is charging.

    References to these changes come from TI’s datasheet, page 14, figure 21 and page 11, figure 21. This datasheet can be found on Digikey’s site.

    • David LeVine

      May 16, 2014 at 8:24 PM

      Oops, that is figure 28 on page 14, not figure 21.
